Hyper-Threading and Virtualization: Optimizing Hyper-V and ESXi

Introduction

Hyper-Threading (HT) creates logical cores from physical ones, allowing CPUs to schedule more threads simultaneously. In virtualization, this can mean better throughput or unpredictable latency. Whether HT helps or hurts depends on your hypervisor, workload, and hardware features like VT-x, VT-d, and SR-IOV. Before we start, I will do a very simplified explanation of some terms that we will be using. If you are familiar, please skip or keep reading, up to you.

What Happens Inside the CPU with Hyper-Threading

Imagine each CPU core is a small workshop. Normally, one worker (thread) uses the tools and space. With Hyper-Threading (HT), two workers share the same workshop. They try to work at the same time — sometimes helping each other, sometimes getting in each other’s way.

What Is Cache?

Cache is like a tool bench inside the CPU. It holds the most-used data, so the worker doesn’t have to walk far to get it. There are different levels:

• L1 cache: super fast, very small
• L2 cache: bigger, still fast
• L3 cache: shared across cores, slower but larger

If you want more info about memory types, you can read the following post Memory intricacies: Volatile vs. Non-Volatile

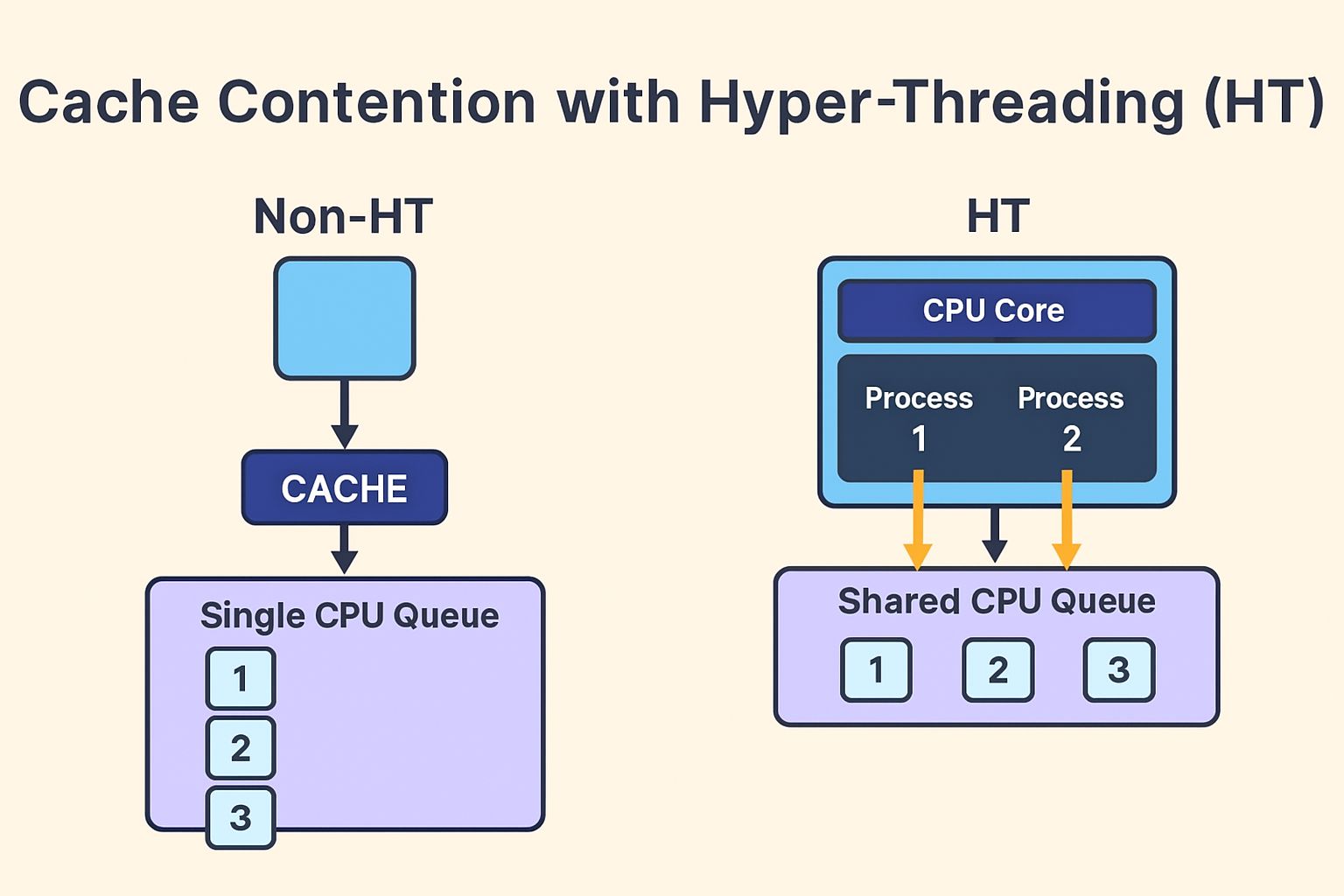

HT and Cache: What Changes?

When HT is ON:

• Two threads share the same cache.
• If one thread is waiting, the other can use the tools; good for mixed workloads.
• But if both threads want the same data, they fight over cache — this slows things down.

When HT is OFF:

• One thread gets full access to the cache.
• No fighting, more predictable speed.
• Better for tasks that need clean timing or lots of memory.

Real Examples:

Web servers: HT helps — one thread waits for the network, the other keeps working.
Video editing or gaming: HT can help or hurt — depends on how much cache is used.
Scientific or trading apps: HT often hurts — they need clean, fast access to memory.

Summary Table:

HT Mode	Cache Behavior	Best For
HT Enabled	Shared cache, better utilization	Mixed workloads, multitasking
HT Disabled	Full cache per thread, no fighting	Real-time, latency-sensitive

VT-x (Intel) and AMD-V: Hardware Virtualization

• VT-x (Intel) and AMD-V (AMD) are CPU features that allow virtual machines (VMs) to run directly on the processor — not through slow software emulation.
• They introduce special instructions (VMX, SVM) and control structures (VMCS) that let hypervisors manage guest OSes efficiently.
• Why it matters: Without VT-x/AMD-V, virtualization is slower and less secure. These features are required for Hyper-V, VMware Workstation, VirtualBox, and bhyve (FreeBSD).

VT-d (Intel) and AMD-Vi: I/O Virtualization

• VT-d (Intel) and AMD-Vi (AMD) are extensions that allow VMs to directly access physical devices like NICs, GPUs, or storage controllers.
• They support PCI passthrough, meaning a VM can use a device as if it were physically attached.
• Why it matters: This boosts performance and reduces overhead for high-speed networking, GPU workloads, and storage.

Most commonly used in: KVM, Xen, ESXi, and Hyper-V for device passthrough.

SR-IOV: Single Root I/O Virtualization

• SR-IOV is a PCIe standard that lets a single physical device (usually a NIC) present multiple Virtual Functions (VFs) to VMs.
• Each VF acts like a mini NIC, sharing the same hardware but isolated for performance and security.
• Why it matters: SR-IOV delivers near-native network speed to VMs, ideal for firewalls, routers, and trading platforms.

Requires BIOS support, SR-IOV-capable NIC, and hypervisor configuration.

This diagram shows two ways computers handle network traffic.

On the left, both processes wait in line to use one network card, like sharing a single checkout lane. On the right, each process gets its own lane through a special card that splits itself — no waiting, no fighting. Same number of processes, same number of lanes — but the setup decides whether they compete or cruise.

Hyper-Threading and PCIe: Do They Interact?

Short Answer:

Hyper-Threading (HT) and PCIe don’t directly affect each other — but they share system resources, and under heavy load, HT can influence how PCIe devices perform.

What Happens Inside the System

• PCIe devices (like NICs, GPUs, SSDs) talk to the CPU through lanes — like highways.
• HT creates more logical threads, which means more traffic on those highways.
• If multiple threads hit the same PCIe device (e.g., a NIC with SR-IOV), they may compete for bandwidth and cache access.

When HT Can Affect PCIe Performance

• SR-IOV NICs: Multiple VMs using Virtual Functions (VFs) may share the same physical NIC. HT threads can increase interrupt load and cache pressure.
• NVMe SSDs: HT may cause more I/O threads to run, increasing queue depth — good for throughput, but bad for latency.
• GPU passthrough: HT can increase context-switching overhead if vCPUs aren’t pinned properly.

Real-world tests by NASA and CloudFlare



NASA’s Hyper-Threading Study (2011)

• Tested scientific applications used in computational fluid dynamics (CFD).
• Found that HT improves processor resource utilization, especially when one thread stalls and the other can use idle execution units.
• But HT didn’t always improve overall performance — in some cases, cache contention and memory bottlenecks reduced gains.
• Quote: “HT generally improves processor resource utilization efficiency, but does not necessarily translate into overall application performance gain.” NASA’s Hyper-Threading Study (2011)

Cloudflare’s Benchmark (2021)

• Measured HT and Turbo Boost on AMD EPYC (Zen 2/Rome) servers.
• Found that HT improves throughput for web workloads — especially when threads are I/O-bound or lightly loaded.
• But under full load, HT caused cache contention and unpredictable latency.
• Cloudflare disabled HT on some servers to improve consistency for latency-sensitive services.
• Quote: “Hyper-Threading can improve throughput, but under heavy load it may introduce performance variability.”
• Cloudflare Blog

What These Tests Teach Us

• HT is not a universal win — it depends on workload type, cache usage, and scheduling.
• Scientific and HPC apps may suffer from shared cache and memory bandwidth limits.
• Web and cloud services benefit from HT when workloads are mixed or I/O-heavy.
• Disabling HT can improve predictability, reduce jitter, and mitigate side-channel risks.

2024–2025 data from AMD, Intel, and Cloud virtualization platforms showing that Hyper-Threading (HT) still benefits throughput in mixed workloads, but may hurt latency and cache-sensitive performance. AMD continues to support SMT in Zen 5, while Intel is phasing out HT in some designs.
